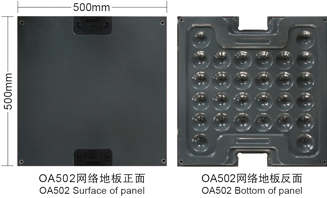

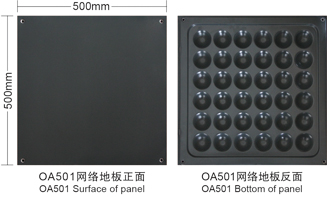

產品結構 Structure

優質冷軋鋼板拉伸后點焊成形，外表經磷化后進行噴塑處理，內腔填充發泡水泥，四角帶有角鎖孔。最底板面高度可為5cm，地板四周可根據使用要求任意添加線槽，布線更具靈活性，可以將強、弱電分開隔離，便于檢修，節約大樓空間，更體現出地板的架空功能性。

OA-500 steel raised floor is made of good quality deep stretch coil steel,which is punched,spot-welded and coated by epoxy powder.The panel is filled with foamed cement inside.Comparing to traditional raised floor,trunking can be added to the floor freely.More flexible wiring which can segrate the strong and weak current,simplfy the equipment maintainance,save the building space and it fully reflects raised floor functionality.

特點 Feature

全鋼組件，機械性能高，承載能力強，防火性能好;
自身重量輕，減輕樓面荷重；
表面靜電噴塑、柔光、耐磨、防腐蝕；
尺寸精度高，互換性能好，組裝靈活，維修方便；
表面鋪設方塊地毯，美觀大方，裝飾性強。

Constituted by all-steel and good loading capacity,excellent fire-proof;
Less weight and less load to sub-floor;
The panal surface is coated with epoxy powder, and it is gentle glow,anti-weear and anticorrosion;
High dimension accuracy,excellent inter change ability,easy to install, disassembly and maintain;;
The carpet can be put on the surface of bare panel, which creates an excellent appearance.

應用 Application

寫字樓及智能化辦公環境，OA教室、防塵防水及需要架空的場所。
The intelligent raised floor of OA is fit for office building.OA intelligent building classroom of places need to be raised, dust-proof of waterproof area.

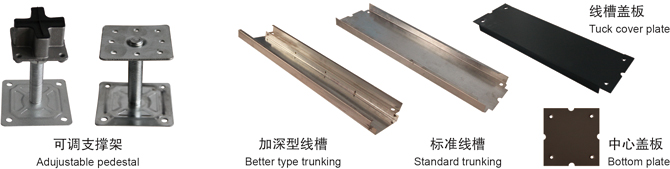

支架-線槽-蓋板 Pedestal-Trunking-Plate

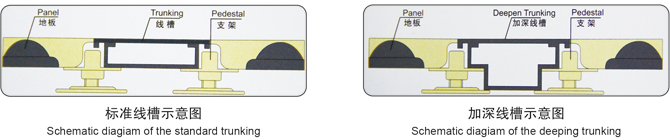

線槽示意圖 Schematic Of Trunking

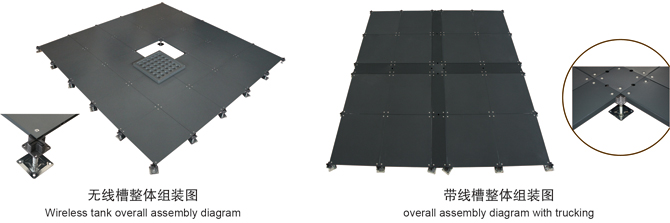

組裝示意圖 Assembly Schematic

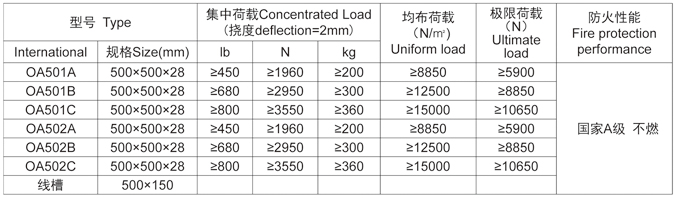

OA全鋼網絡地板技術參數（OA501/502系列Series）
